Chapter 7: Precision Resistors

The Key to Circuit Accuracy – How Do They Work?



1. What Is a Precision Resistor?
A precision resistor is designed to meet very strict standards for resistance accuracy, temperature coefficient (TCR), load life, and both short- and long-term stability. Unlike general-purpose resistors, these components are engineered to minimize capacitance and inductance while delivering consistent resistance values.

Typically, a resistor with more than 1 Ω resistance and an error margin within ±0.5% of its rated value is classified as a precision resistor.

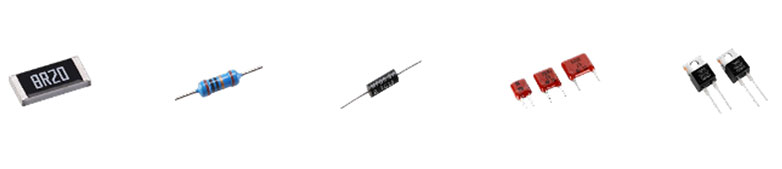

Precision resistors of RMS



Key Benefits of Precision Resistors


 • High Accuracy: Enables precise current and voltage measurements.

 • Temperature Stability: Resistance remains nearly constant despite temperature changes.

 • Durability: Strong resistance against environmental stress ensures long life.



2. How Do Precision Resistors Work?


Precision resistors achieve their accuracy through specialized materials and manufacturing methods:

1) Material Selection

 • Alloys such as nickel-chromium or manganin (copper-manganese) are used for their low TCR, meaning resistance barely changes with temperature.

2) Thin-Film Technology

 • Thin films are used when excellent TCR and precision are required.

3) Laser Trimming

 • Resistance values are finely adjusted during production using laser trimming, achieving accuracy up to ±0.01%.

4) Temperature Coefficient Control

 • A low TCR is critical. For example, with a TCR of ±5 ppm/°C, a 100°C temperature change results in only a ±0.05% resistance variation.

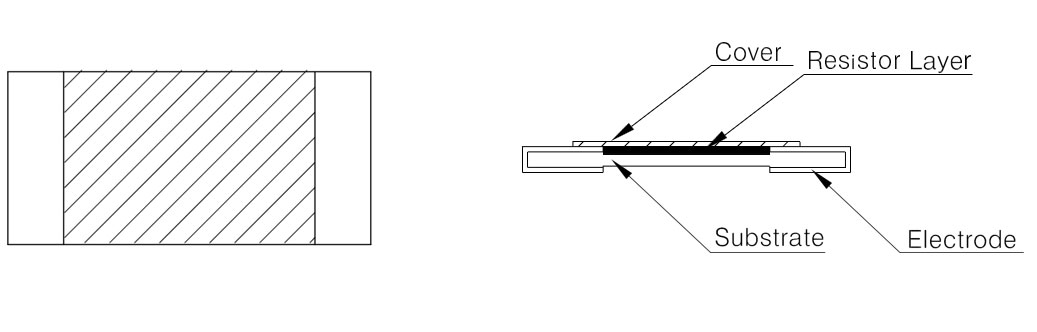

3. Internal Structure of Precision Resistors (Example Model: ARN)


 • Metal Film: Laser-processed patterns allow for precise resistance adjustment.

 • Metal Foil: Alloys with excellent TCR minimize resistance changes caused by temperature shifts.



4. Roles of Precision Resistors


Precision resistors are essential in:



 • Accurate Current & Voltage Control: Crucial in measuring instruments and medical devices.

 • Circuit Calibration: Used when fine-tuning circuits.

 • Reference Voltage Creation: Provides stable voltage references.

 • Signal Processing: Supports ADCs (Analog-to-Digital Converters) and DACs (Digital-to-Analog Converters).



5. Types of Precision Resistors


1. Metal Film: High precision, though TCR is moderate.


2.  Wirewound: Excellent accuracy and TCR, but lower frequency performance.


3. Metal Foil: Outstanding in all aspects—precision, TCR, and stability—achieving up to 0.05% accuracy.


4.  Thin-Film Chip: Compact yet highly precise, ideal for modern devices.



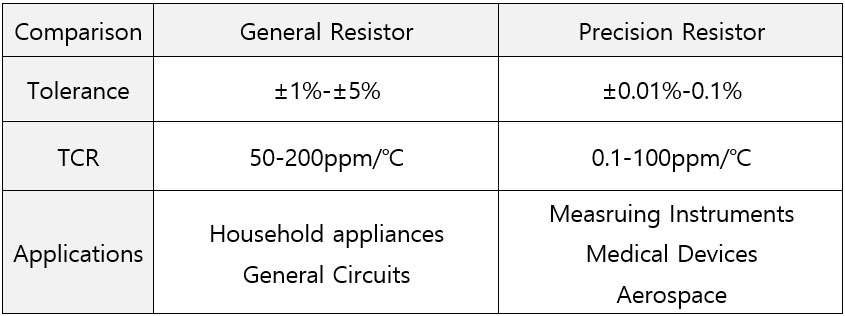

6. Key Characteristics


 • Tolerance: Provides stable voltage references.


 • Temperature Coefficient (TCR): Typically 0.1–10 ppm/°C, ensuring minimal resistance drift.


 • Long-Term Stability: Resistance remains stable over time, critical for equipment requiring years of continuous operation.



7. Why Precision Resistors Are Vital in Medical Devices


Medical equipment demands accuracy and reliability, and precision resistors deliver both:



 • Exact Current & Voltage Control: Supports safe and accurate operation in devices like MRI or CT scanners.

 • Signal Processing & Amplification Circuit Calibration: Ensures reliable ECG or blood pressure readings by capturing delicate bio-signals.

 • Power Management: Helps regulate power supply and extend battery life.

 • Sensor Calibration: Maintains accuracy in thermometers and glucose monitors.


8. Why Use Precision Resistors?




 • High Accuracy: Meets the demanding standards of life-critical equipment.

 • Stability & Reliability: Resistant to temperature and time-based drift.

 • Noise Reduction: Minimizes electrical noise, improving measurement accuracy.

 • Miniaturization & Efficiency: Compact size with high performance, perfect for modern devices.

 • Compliance with Regulations: Helps medical devices meet strict international safety and performance standards.



9. Conclusion

Precision resistors are more than just “accurate resistors.” They are fundamental to the safety, reliability, and efficiency of modern technology. From medical devices to advanced measurement systems, their role is indispensable in ensuring accuracy, long-term stability, and regulatory compliance.
